Additional information
| Weight | 15.6 kg |
|---|---|
| Dimensions | 37 × 26 × 20 cm |

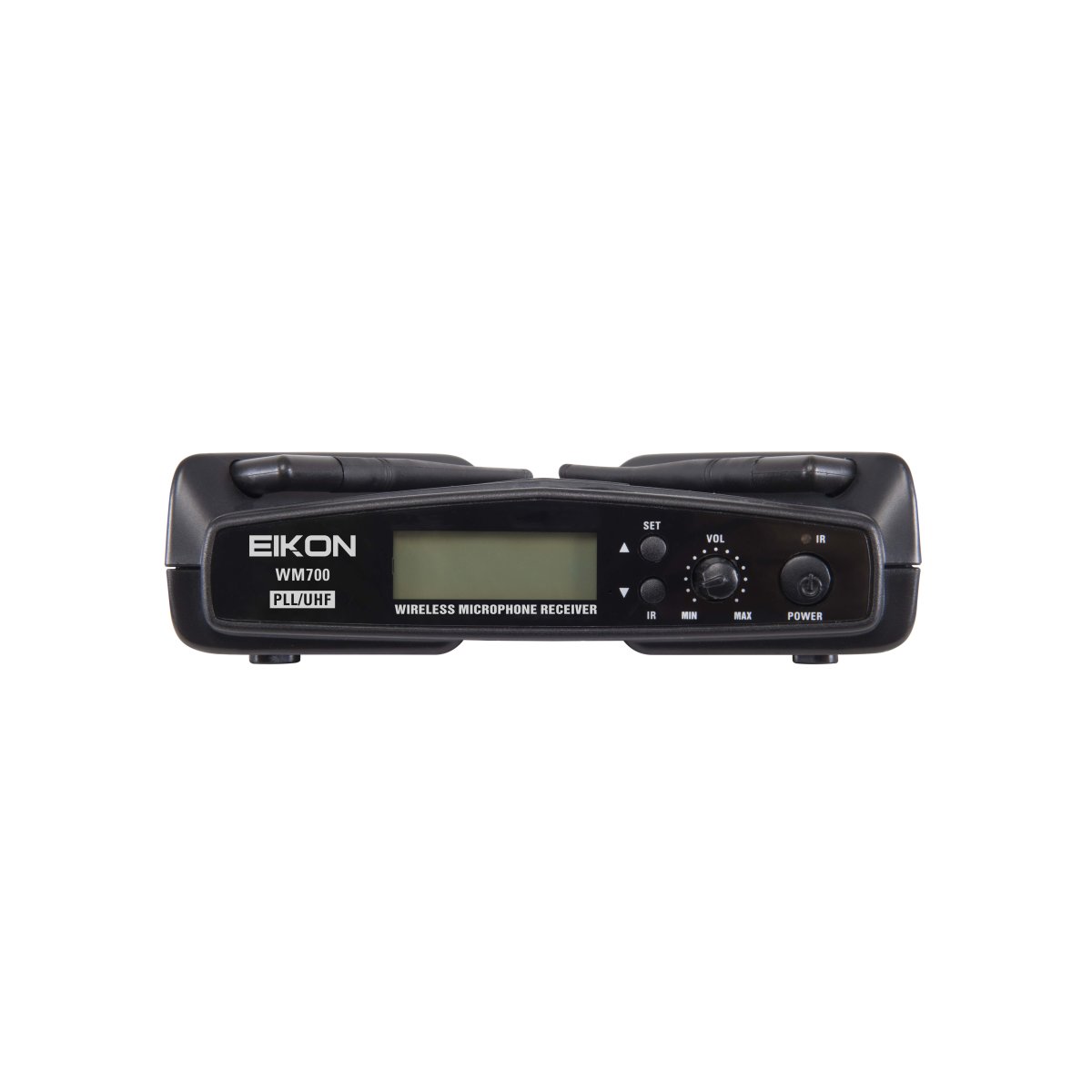

WM700HA
pll uhf wireless belt-pack microphone system
€119.00
The WM700 wireless microphone system is a PLL controlled UHF variable frequency device, which provides reliable and high quality signal transmission, thanks also to the Digital Tone Pilot.
The WM700 wireless microphone system offers 5 different combinations with single channel receiver, dual channel receiver, handheld transmitter and bodypack transmitter with headset microphone.
The system is available in 2 different bands with groups of 16 or 32 pre-set frequencies to be used also simultaneously.
Each configuration includes an ABS case.
- PLL –16 CH Selectable frequency wireless microphone system
- 32 Khz Digital Tone Pilot
- New durable Painting Finishing
- Universal USB Power Adapter
- 823 – 832 Mhz or 512 – 562 Mhz (WM700HA) frequency range
- 30 meter/ 100 feet range
- 50 Hz -15 KHz frequency response
- 105 dB signal/ noise ratio
- Condenser headset with cardioid capsule and Lavalier
- Up to 4 frequency usable in the same location for each Frequency band.
- ABS carrying and storage case
TECHNICAL SPECIFICATIONS
| RECEIVER | |
| Frequency Band | UHF: 518-550 MHz |
| RF Sensibility | -105 dBm |
| RF Image/Spurious Rej. | >70 dB |
| RF Interference Reject. | >70 dB |
| RF Frequency Stability | ±0.002% |
| THD Distortion | <1% |
| S/N Ratio | >105 dB |
| Frequency Response | 50 Hz – 15 KHz (±3 dB) |
| Power Supply | 5 V DC 500 mA |
| Dimensions (mm) | 175 x 135 x 45 |
| BELT-PACK TRANSMITTER | |
| RF Frequency Band | UHF: 518-550 MHz |
| RF Power | <10 dBm |
| Modulation method | FM (F3E) |
| RF Max deviation | ±40 KHz |
| RF Frequency Stability | ±0.002% |
| Spurious Emission | under limits EN 300422 |
| Frequency Response | 50 Hz – 15 KHz (±3 dB) |
| Included Microphones | 2 |
| HCM25 Headset Mic. | Cond. Cardiod |
| LCH100 Lavalier Mic. | Cond. Cardiod |
| Power Supply | 2x1.5V AA alkaline bat |
| Dimensions (mm) | 100 x 65 x 30 |
