WM700DHA

dual channel pll uhf wireless belt-pack microphone system

169.00

The WM700 wireless microphone system is a PLL controlled UHF variable frequency device, which provides reliable and high quality signal transmission, thanks also to the Digital Tone Pilot.

The WM700 wireless microphone system offers 5 different combinations with single channel receiver, dual channel receiver, handheld transmitter and bodypack transmitter with headset microphone.

The system is available in 2 different bands with groups of 16 or 32 pre-set frequencies to be used also simultaneously.

Each configuration includes an ABS case.

  • PLL –16 CH Selectable frequency Dual Channel wireless microphone system
  • 32 Khz Digital Tone Pilot
  • New durable Painting Finishing
  • Universal USB Power Adapter
  • 823 – 832 Mhz or 512 – 562 Mhz (WM700DHA) frequency range
  • 30 meter/ 100 feet range
  • 50 Hz -15 KHz frequency response
  • 105 dB signal/ noise ratio
  • 2 x Condenser headset with cardioid capsule and 2 x Lavalier
  • Up to 4 frequency usable in the same location for each Frequency band.
  • ABS carrying and storage case

Additional information

Weight 11.7 kg
Dimensions 37 × 26 × 20 cm

Wireless Microphones

TECHNICAL SPECIFICATIONS

RECEIVER
Frequency Band UHF: 823-832 MHz o 512-562 Mhz (WM700DHA)
RF Sensibility -105 dBm
RF Image/Spurious Rej. >70 dB
RF Interference Reject. >70 dB
RF Frequency Stability ±0.002%
THD Distortion <1%
S/N Ratio >105 dB
Frequency Response 50 Hz – 15 KHz (±3 dB)
Power Supply 5 V DC 500 mA
Dimensions (mm) 175 x 135 x 45

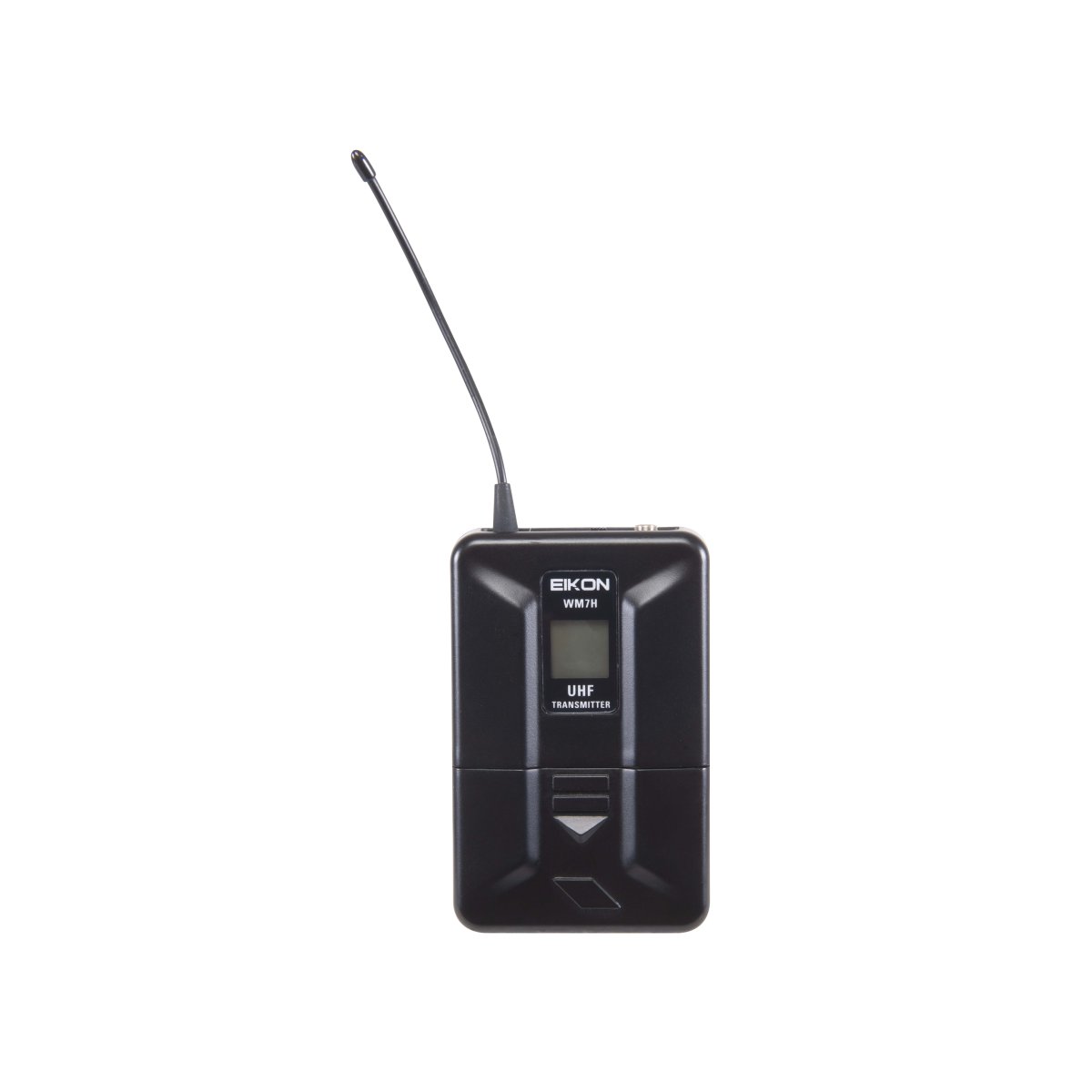

BELT-PACK TRANSMITTER
RF Frequency Band UHF: 823-832 MHz o 512-562 Mhz (WM700DHA)
RF Power <10 dBm
Modulation method FM (F3E)
RF Max deviation ±40 KHz
RF Frequency Stability ±0.002%
Spurious Emission under limits EN 300422
Frequency Response 50 Hz – 15 KHz (±3 dB)
Included Microphones 2
HCM25 Headset Mic. Cond. Cardiod
LCH100 Lavalier Mic. Cond. Cardiod
Power Supply 2x1.5V AA alkaline bat
Dimensions (mm) 100 x 65 x 30
