HCS20
brass instruments microphone with in-line pre-amp
€79.00
The HCS20 is a clip on microphone for wind instruments. The clip is placed on the bell of a trumpet, saxophone, trombone, tuba or other wind instrument.
The cardioid polar pattern allows it to be used on stage in high SPL conditions and its linear frequency response ensures a natural, clear and powerful sound.
To be powered directly with cable via the supplied IN-LINE preamplifier, or to be connected directly to a bodypack transmitter.
- Miniature condenser microphone
- 8 mm permanently polarized condenser capsule
- Cardioid Polar Pattern
- Phantom adapter included
- Belt-pack transmitter compatible with mini XLR 3 pole plug
- Built-in windscreen (additional external windscreen included)
- Designed for on-stage use with instruments, specifically saxophone, clarinet, trombone, trumpet
DOWNLOAD

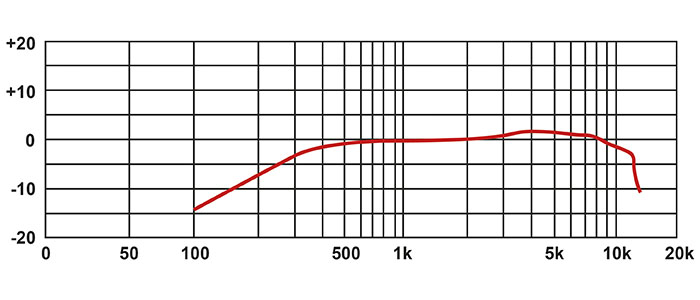

Frequency Response
Polar Pattern
Where to buy
TECHNICAL SPECIFICATIONS
| Type | Back Electret Condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 50 - 16000 Hz |
| Sensitivity | -45dB |
| Max Spl for 1% THD | 130 dB |
| S/N Ratio | > 70 dB |
| Impedance | 2000 Ω ±30% |
| Power Requirement | 48 V Phantom Power |
| Cable | L 1000 x Ø 2 mm |
| Colour | Black |
| Accessories | Windscreen |
DIAGRAMS
