Additional information
| Weight | 17.6 kg |
|---|---|
| Dimensions | 43 × 46 × 50 cm |

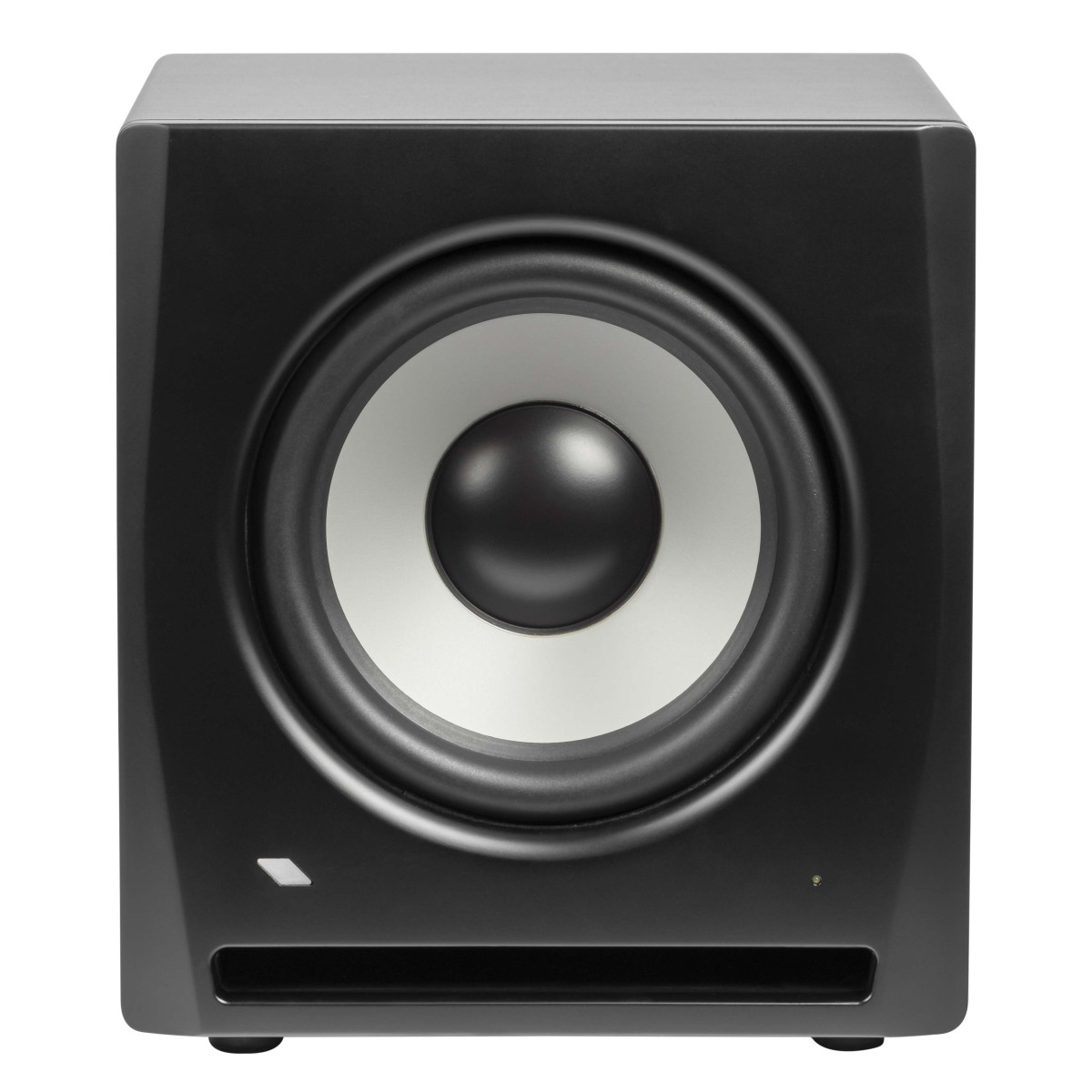

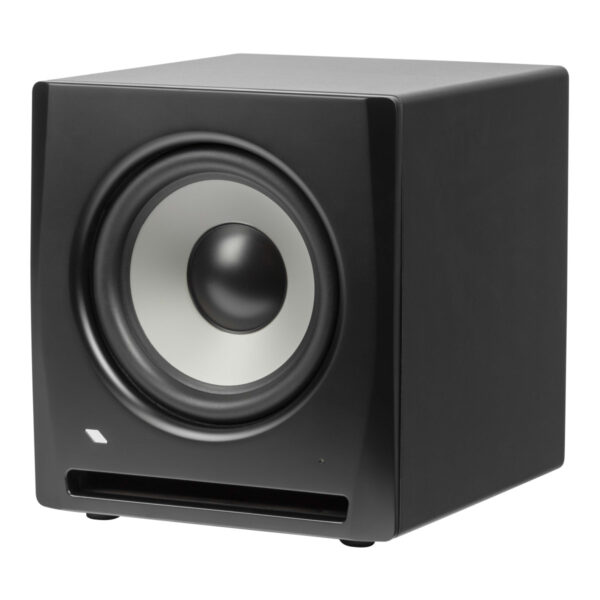

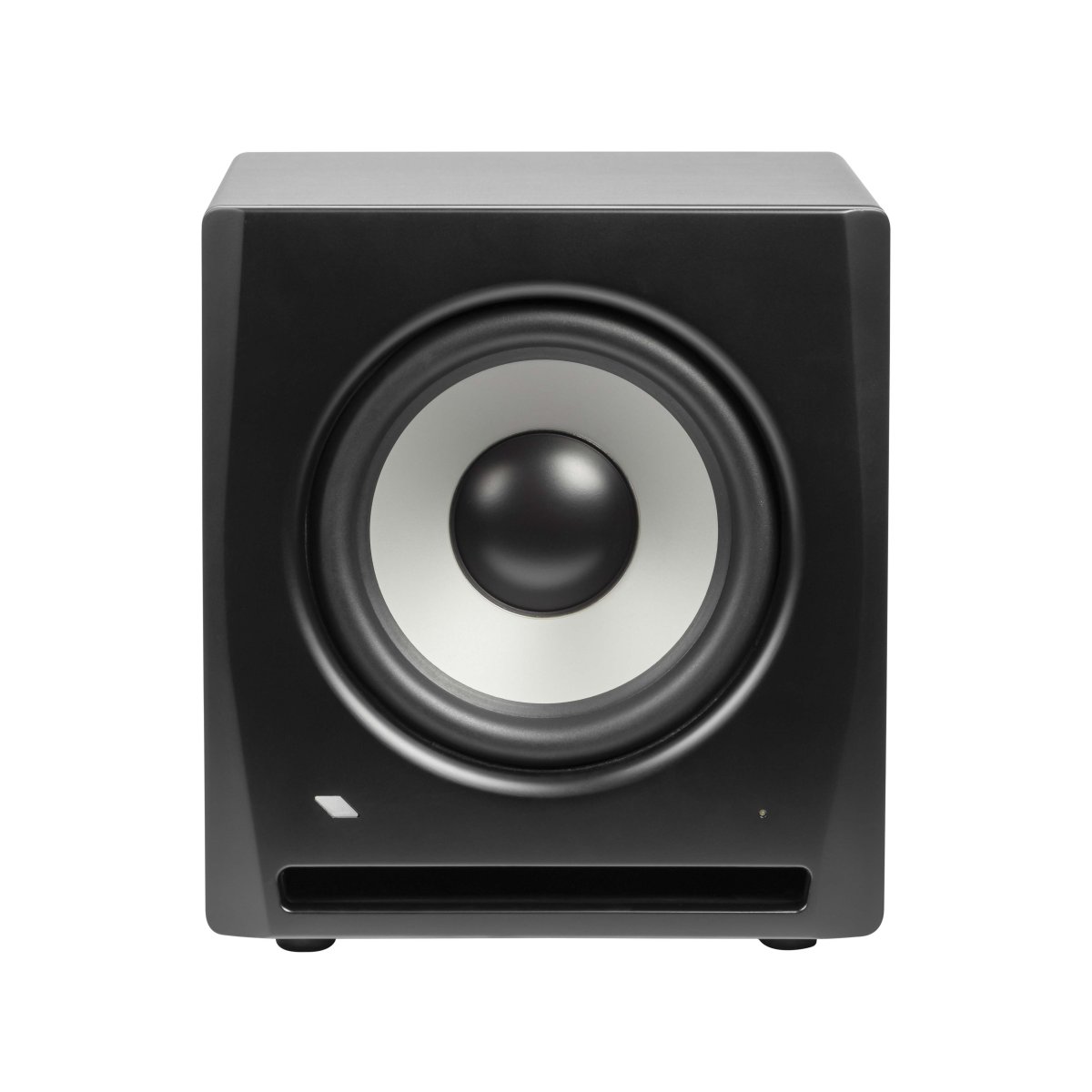

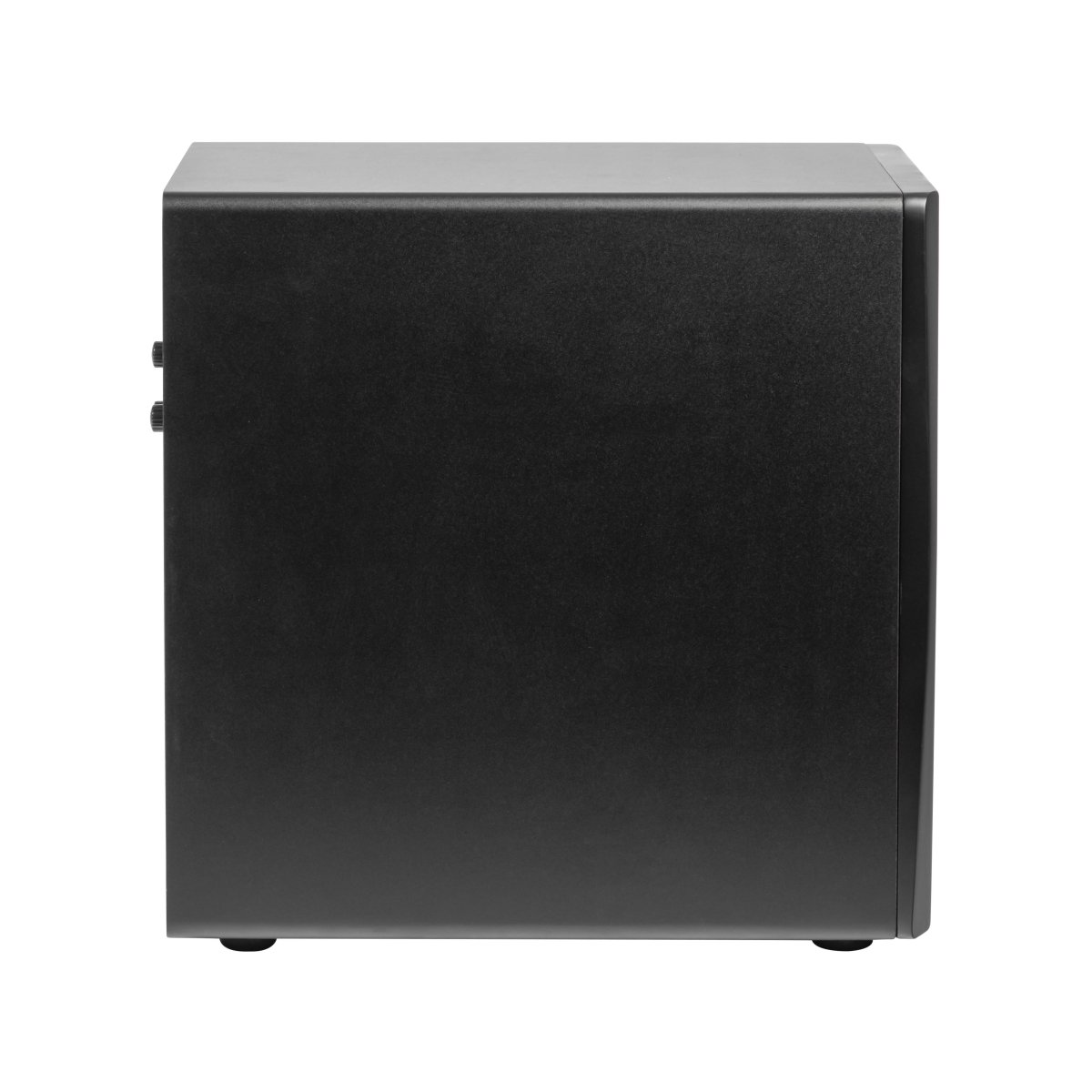

EK10SW
10” 150 w studio subwoofer
€269.00
EK NF is the ideal nearfield monitor solution for any kind of music production applications. From the carefully selected transducers to the proprietary enhanced waveguides and to the low resonance cabinet design, everything has been tailored to offer the best accuracy over the whole audio spectrum. The perfectly optimized electronics, including high headroom separate Class AB amplifiers for high and low section, high precision crossover networks and separate LIMITER circuits, provide maximum resolution and minimum listening fatigue.
- Active vented sub-woofer

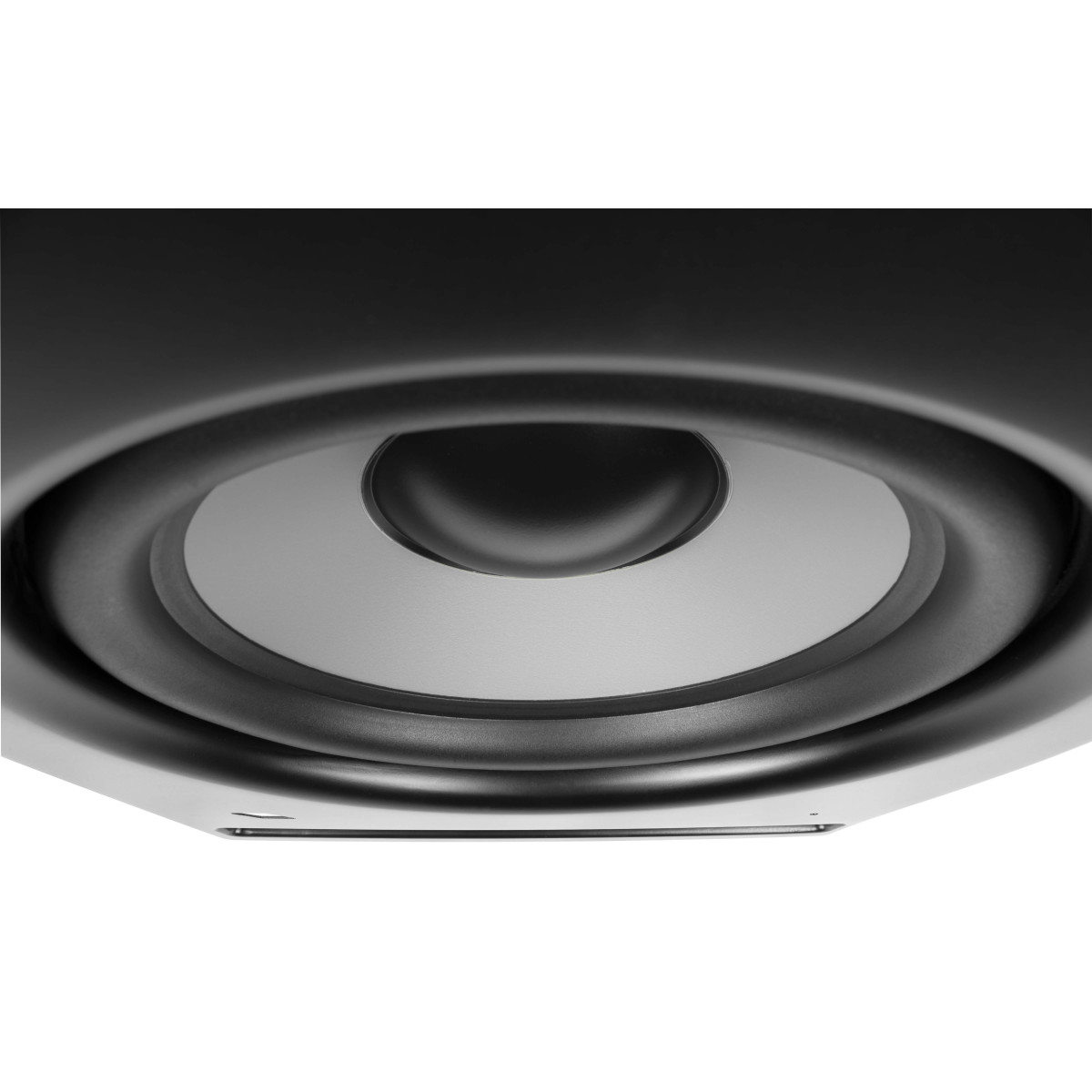

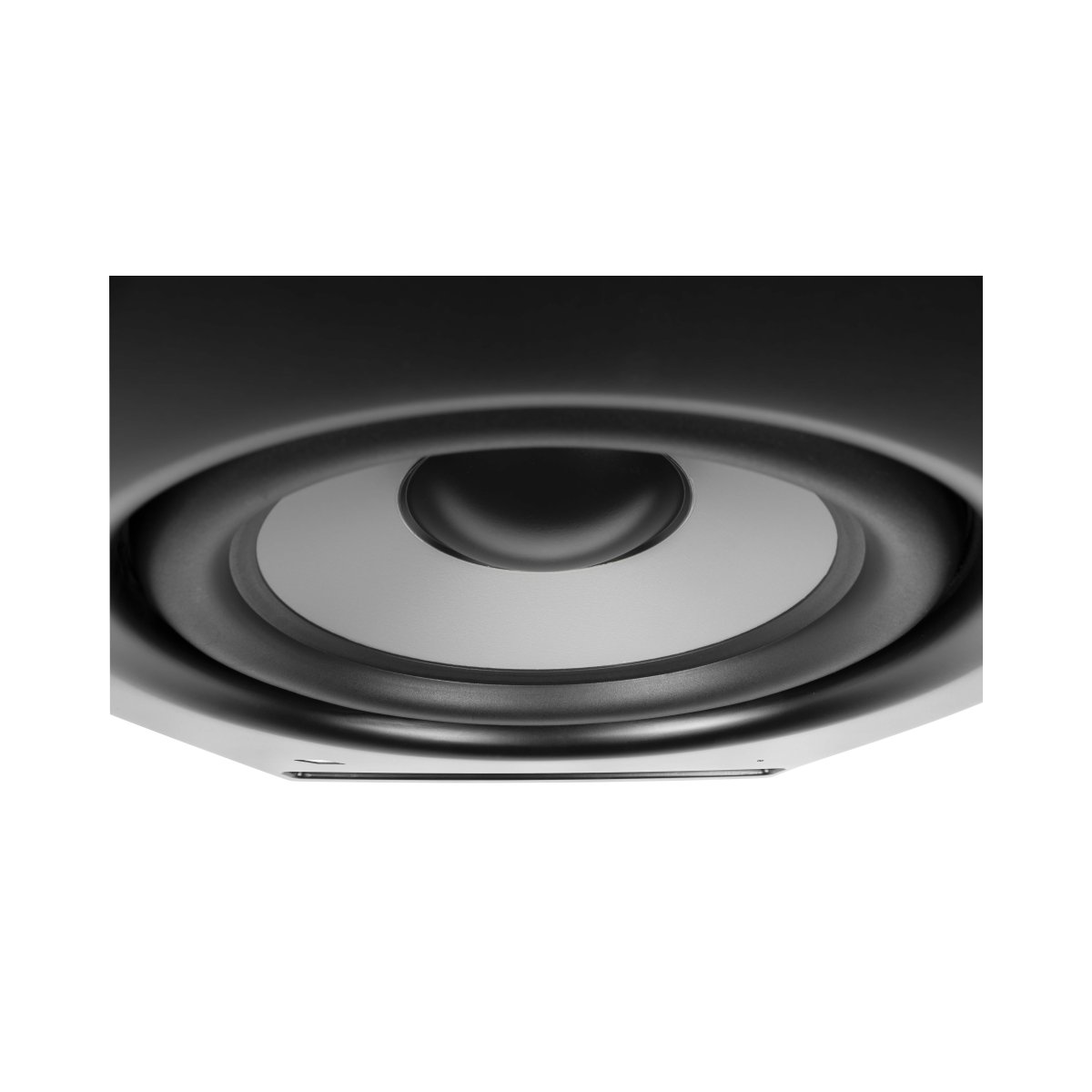

- Long-excursion 10” woofer with PP cone featuring very extended response
- Precisely calculated front tuning port for greater low-frequency extension
- Stereo balanced inputs, outputs and link connectors for MONO and STEREO operation
- Optimized crossover design with HI-CUT and LO-CUT frequency control
- High-headroom Class AB 150W amplifier with accurate CLIP LIMITER
Microphone&Headphone
TECHNICAL SPECIFICATIONS
| System type | Vented sub-woofer |
| Low Frequency Device | 10” woofer with PP cone |
| LF Amplifier Continuous Power | 150W Class AB |
| Processing | Analog |
| Frequency Response | 40 Hz - 150 Hz |
| Max SPL | 110 dB |

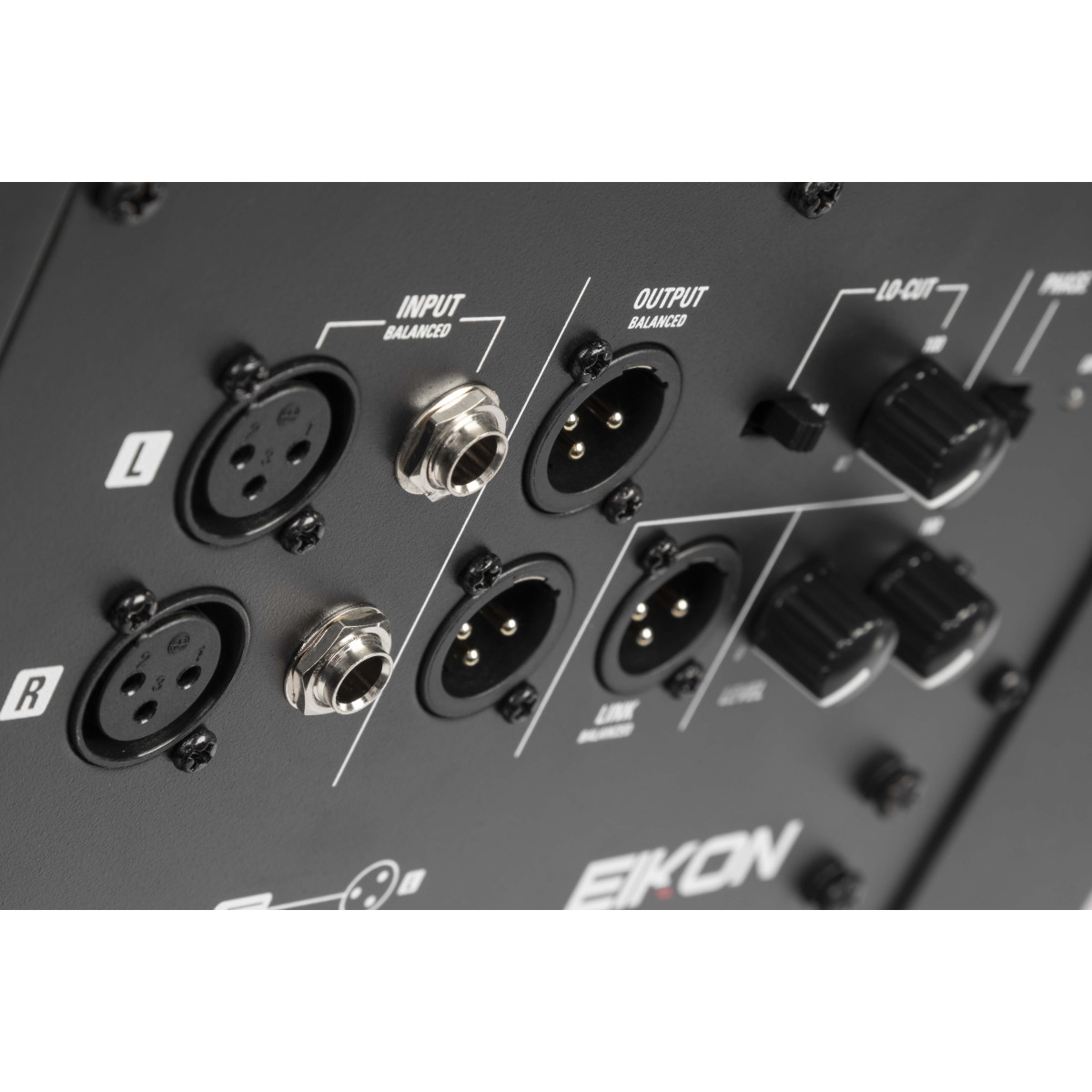

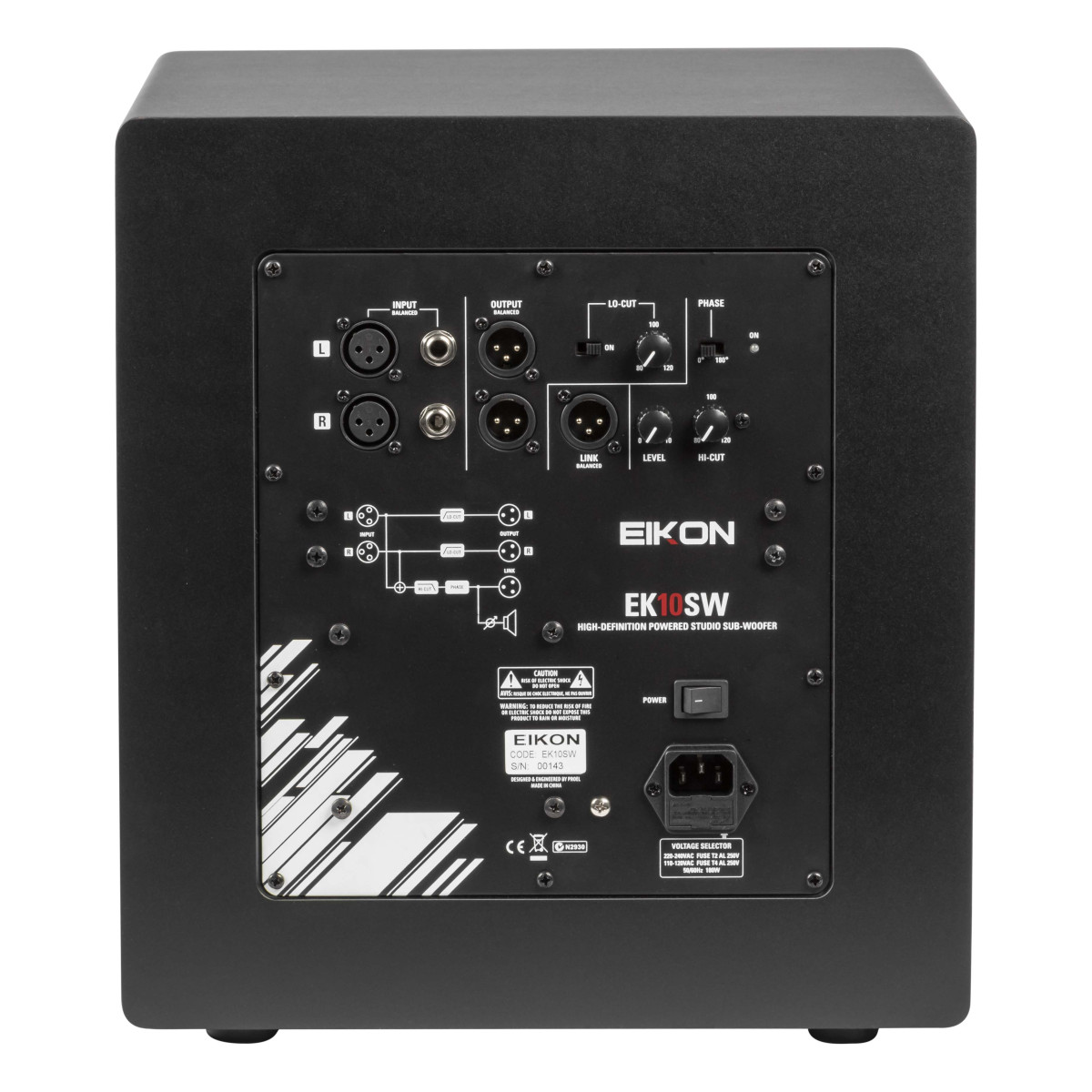

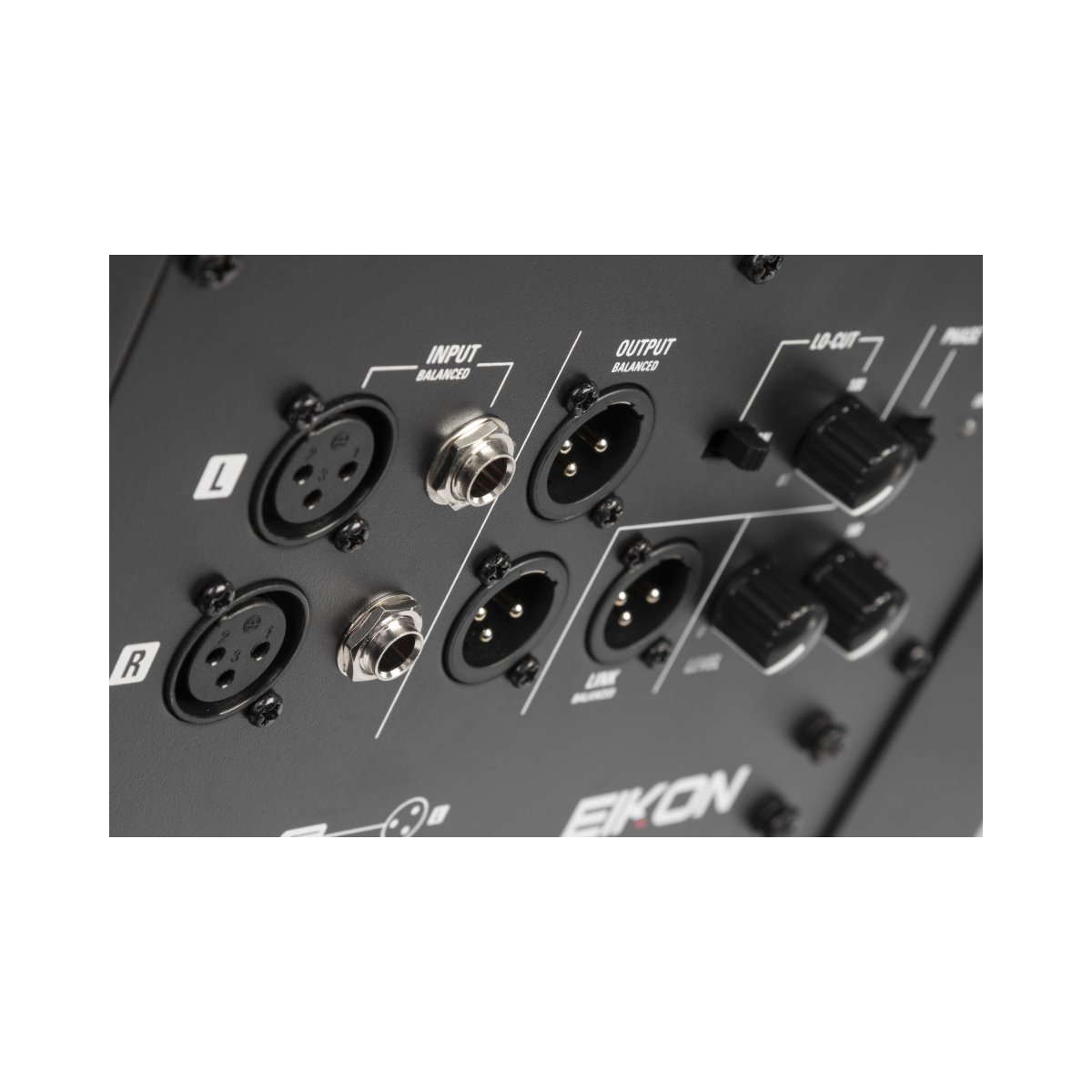

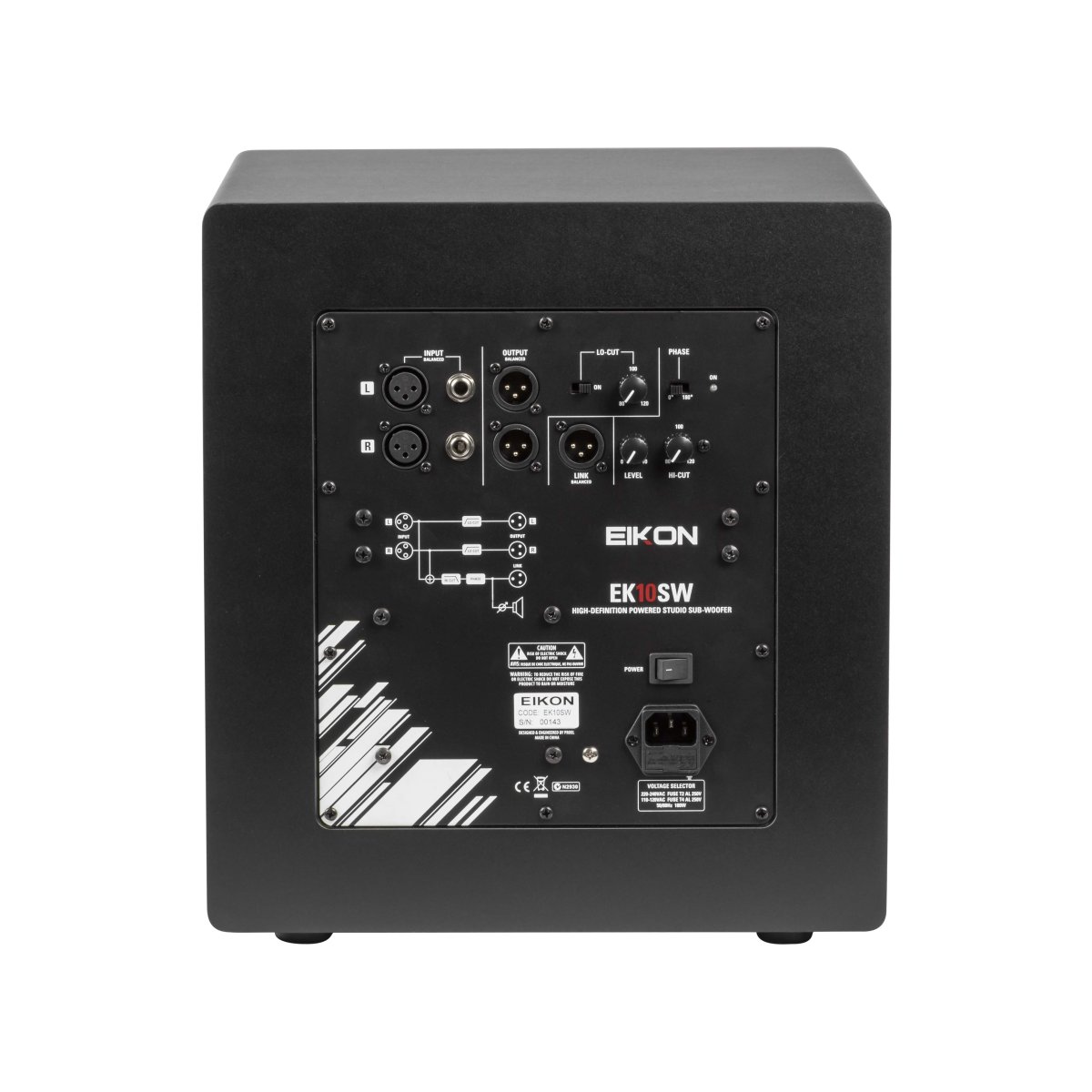

| Connectors | 1/4” JACK, XLR-F (stereo INPUT), XLR-M (stereo OUTPUT), XLR-M (LINK) |
| Controls | LEVEL, HI-CUT & LO-CUT frequency selector, PHASE |
| Construction | Vinyl laminated MDF cabinet with MDF front |
| Cabinet Colour | Black |
| Power Supply | 230 VAC or 120 VAC 50/60 Hz with LINE VOLTAGE selector |
| Dimensions (W x H x D) | 330 x 365 x 365 mm |
| Weight | 15.3 kg |
